SqlSession原理中介绍了在SQL查询时一级缓存和二级缓存的调用过程。这里介绍一下缓存的场景和失效。

image-20220405134607618

一、一级缓存

一级缓存与SqlSession相关，是一个会话级别的缓存，会话关闭清空缓存。在会话中一级缓存与运行时参数和操作配置相关

命中场景

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
public class FirstCacheTest {
    private Configuration configuration;
    private SqlSession sqlSession;

    @Before
    public void init() throws IOException, SQLException {
        SqlSessionFactoryBuilder factoryBuilder = new SqlSessionFactoryBuilder();
        InputStream inputStream = Resources.getResourceAsStream("mybatis-config.xml");
        SqlSessionFactory build = factoryBuilder.build(inputStream);
        configuration = build.getConfiguration();
        sqlSession = build.openSession();
    }

    @Test
    public void test(){
        AccountMapper mapper = sqlSession.getMapper(AccountMapper.class);
        List<Account> accounts1 = mapper.selectById(1);
        List<Account> accounts2 = mapper.selectById(1);
        System.out.println(accounts1 == accounts2);
    }
}

缓存命中有几个运行时参数要求

  1. sql和参数必须相同
  2. 必须是相同的statementID，sql相同也不行
  3. sqlSession必须相同
  4. RowBounds 返回行返回必须相同

清理缓存之后就无法命中，默认采用的是simple执行器，编译2次，执行2次。建议采用的reuse执行器。只有有一条执行语句加入了flushCache=true等同于 sqlSession.clearCache()。共有4种操作配置导致缓存无法命中的场景：

  1. 手动sqlSession.clearCache(),sqlSession.commit(), sqlSession.rollback()
  2. 执行的方法上加入flushCache=true
  3. 中间执行Update语句
  4. 缓存作用域不是SESSION 改为STATEMENT这里是嵌套查询（子查询）
1
2
3
4
5
6
7
8
@Test
public void test2(){
    AccountMapper mapper = sqlSession.getMapper(AccountMapper.class);
    List<Account> accounts1 = mapper.selectById(1);
    sqlSession.clearCache();
    List<Account> accounts2 = mapper.selectById(1);
    System.out.println(accounts1 == accounts2);
}

一级缓存源码解析

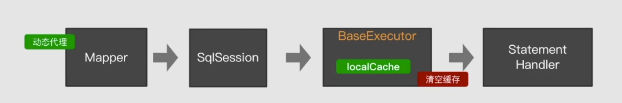

sqlSession查询时的流程：

image-20220405140905640

命中缓存

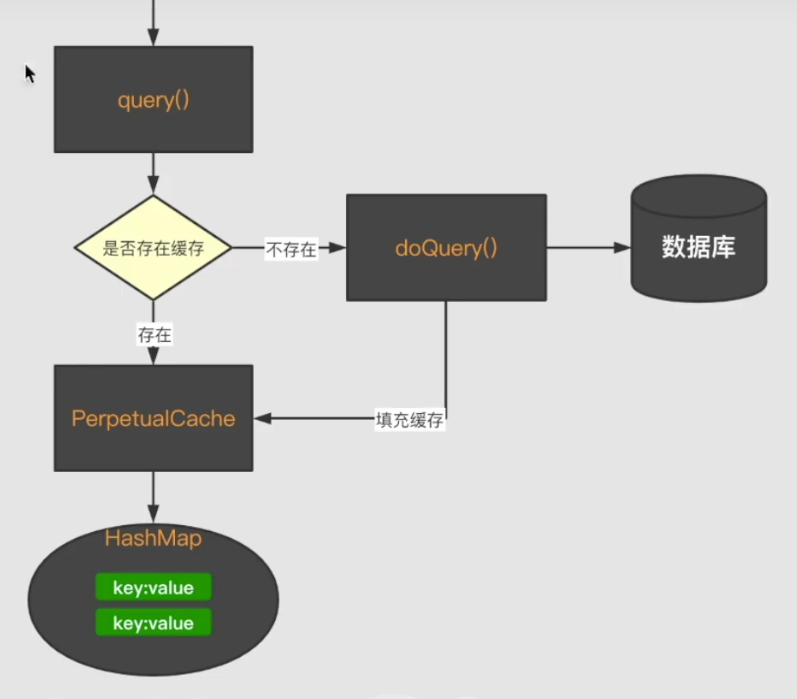

其中的BaseExecutor中的localCache的流程：

image-20220405142235268

BaseExecutor中的query源码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
@SuppressWarnings("unchecked")
public <E> List<E> query(MappedStatement ms, Object parameter, RowBounds rowBounds, ResultHandler resultHandler, CacheKey key, BoundSql boundSql) throws SQLException {
  ErrorContext.instance().resource(ms.getResource()).activity("executing a query").object(ms.getId());
  if (closed) throw new ExecutorException("Executor was closed.");
   //query实现嵌套查询，查询中有子查询，这里就会变大
  if (queryStack == 0 && ms.isFlushCacheRequired()) {
    clearLocalCache();
  }
  List<E> list;
  try {
    queryStack++;
      //查询一级缓存
    list = resultHandler == null ? (List<E>) localCache.getObject(key) : null;
    //
      if (list != null) {
      handleLocallyCachedOutputParameters(ms, key, parameter, boundSql);
    } else {
      list = queryFromDatabase(ms, parameter, rowBounds, resultHandler, key, boundSql);
    }
  } finally {
    queryStack--;
  }
  if (queryStack == 0) {
    for (DeferredLoad deferredLoad : deferredLoads) {
      deferredLoad.load();
    }
    deferredLoads.clear(); // issue 601
    if (configuration.getLocalCacheScope() == LocalCacheScope.STATEMENT) {
      clearLocalCache(); // issue 482
    }
  }
  return list;
}

//查询数据库
private <E> List<E> queryFromDatabase(MappedStatement ms, Object parameter, RowBounds rowBounds, ResultHandler resultHandler, CacheKey key, BoundSql boundSql) throws SQLException {
    List<E> list;
    //先占位，为了嵌套查询
    localCache.putObject(key, EXECUTION_PLACEHOLDER);
    try {
       //执行子类的查询
      list = doQuery(ms, parameter, rowBounds, resultHandler, boundSql);
    } finally {
      localCache.removeObject(key);
    }
    localCache.putObject(key, list);
    if (ms.getStatementType() == StatementType.CALLABLE) {
      localOutputParameterCache.putObject(key, parameter);
    }
    return list;
  }

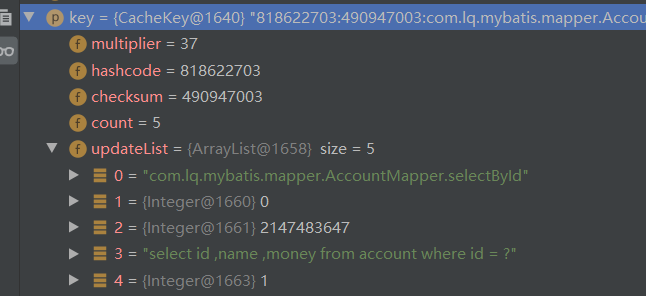

一级缓存的key，只有都相同才能命中：

image-20220405143753736
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
public class CacheKey implements Cloneable, Serializable {

  private static final long serialVersionUID = 1146682552656046210L;

  public static final CacheKey NULL_CACHE_KEY = new NullCacheKey();

  private static final int DEFAULT_MULTIPLYER = 37;
  private static final int DEFAULT_HASHCODE = 17;

  private int multiplier;
  private int hashcode;
  private long checksum;
  private int count;
  private List<Object> updateList;
}

这5个参数分别为，statementID、分页上下限、sql语句、参数

清空缓存

清空缓存的操作

1
2
3
4
5
6
public void clearLocalCache() {
  if (!closed) {
    localCache.clear();
    localOutputParameterCache.clear();
  }
}

一共有4个地方调用了这个方法query、update、commit、rollback

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
//查询
public <E> List<E> query(MappedStatement ms, Object parameter, RowBounds rowBounds, ResultHandler resultHandler, CacheKey key, BoundSql boundSql) throws SQLException {
    ...
     //如果第一次查询并且配置了查询前刷新缓存
    if (queryStack == 0 && ms.isFlushCacheRequired()) {
      clearLocalCache();
    }

    ...
    if (queryStack == 0) { //清空缓存不能发生在子查询，子查询依赖了一级缓存
        for (DeferredLoad deferredLoad : deferredLoads) {
            deferredLoad.load();
        }
        deferredLoads.clear(); // issue 601
        //如果缓存是作用域是 LocalCacheScope.STATEMENT也会去清空缓存
        if (configuration.getLocalCacheScope() == LocalCacheScope.STATEMENT) {
            clearLocalCache(); // issue 482
        }
     }
 }
//更新
public int update(MappedStatement ms, Object parameter) throws SQLException {
    ErrorContext.instance().resource(ms.getResource()).activity("executing an update").object(ms.getId());
    if (closed) throw new ExecutorException("Executor was closed.");
    clearLocalCache();
    return doUpdate(ms, parameter);
  }

//提交
public void commit(boolean required) throws SQLException {
  if (closed) throw new ExecutorException("Cannot commit, transaction is already closed");
  clearLocalCache();
  flushStatements();
  if (required) {
    transaction.commit();
  }
}

//回滚
public void rollback(boolean required) throws SQLException {
  if (!closed) {
    try {
      clearLocalCache();
      flushStatements(true);
    } finally {
      if (required) {
        transaction.rollback();
      }
    }
  }
}

Spring一级缓存失效

会话不相同，如果不配置事务，每次都会新建一个session

1
2
3
4
5
6
7
public void testBySpring(){
    ClassPathXmlApplicationContext context=new ClassPathXmlApplicationContext("spring.xml");
    AccountMapper mapper = context.getBean(AccountMapper.class);
    List<Account> accounts1 = mapper.selectById(1);
    List<Account> accounts2 = mapper.selectById(1);
    System.out.println(accounts1 == accounts2);  //false 无法命中
}

这里的UserMapper与从SqlSession取出的UserMapper不同，每次构造都会构造一个新会话，两次查询都是一个新会话。SqlSession和Executor是一对一的关系。每次查询的Executor不同。

开启事务,后就会有效

1
2
3
4
5
6
7
8
9
10
11
public void testBySpring(){
    ClassPathXmlApplicationContext context=new ClassPathXmlApplicationContext("spring.xml");
    AccountMapper mapper = context.getBean(AccountMapper.class);

    DataSourceTransactionManager transactionManager =(DataSourceTransactionManager) context.getBean("txManager");
    //手动开启事务
    TransactionStatus status = transactionManager.getTransaction(new DefaultTransactionDefinition());// 获得事务状态
    List<Account> accounts1 = mapper.selectById(1);
    List<Account> accounts2 = mapper.selectById(1);
    System.out.println(accounts1 == accounts2);  //false 无法命中
}

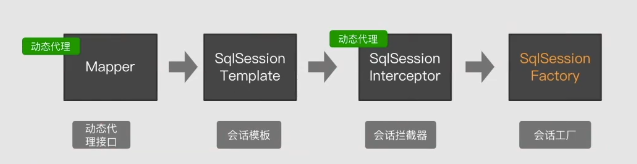

mapper -> SqlSessionTemplate -> SqlSessionInterceptor -> SqlSessionFactory

image-20220414222558730

动态代理嵌入动态代理最终调用Mybatis的 SqlSessionFactory

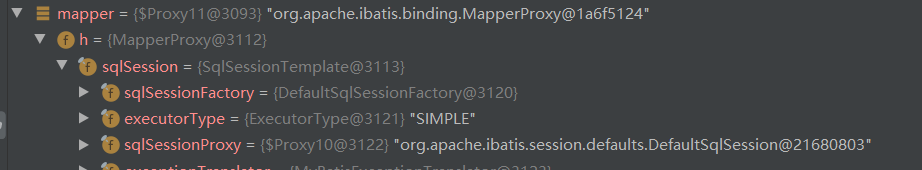

image-20220414222932796

这里的sqlSession是SqlSessionTemplate,sqlSessionProxy就是SqlSessionInterceptor

SqlSessionTemplate

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
public class SqlSessionTemplate implements SqlSession {

  private final SqlSessionFactory sqlSessionFactory;

  private final ExecutorType executorType;

  private final SqlSession sqlSessionProxy; //这里还是一个SqlSession

  private final PersistenceExceptionTranslator exceptionTranslator;

  public SqlSessionTemplate(SqlSessionFactory sqlSessionFactory, ExecutorType executorType,
      PersistenceExceptionTranslator exceptionTranslator) {

    notNull(sqlSessionFactory, "Property 'sqlSessionFactory' is required");
    notNull(executorType, "Property 'executorType' is required");

    this.sqlSessionFactory = sqlSessionFactory;
    this.executorType = executorType;
    this.exceptionTranslator = exceptionTranslator;
     //JDK的动态代理，所有的都在SqlSessionInterceptor，这个就是动态代理
    this.sqlSessionProxy = (SqlSession) newProxyInstance(
        SqlSessionFactory.class.getClassLoader(),
        new Class[] { SqlSession.class },
        new SqlSessionInterceptor());
  }
}

通过2层的动态代理，实现Spring的事务

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
private class SqlSessionInterceptor implements InvocationHandler {
  public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
      //从这里获取SqlSession
    SqlSession sqlSession = getSqlSession(
        SqlSessionTemplate.this.sqlSessionFactory,
        SqlSessionTemplate.this.executorType,
        SqlSessionTemplate.this.exceptionTranslator);
    try {
      Object result = method.invoke(sqlSession, args);
      if (!isSqlSessionTransactional(sqlSession, SqlSessionTemplate.this.sqlSessionFactory)) {
        // force commit even on non-dirty sessions because some databases require
        // a commit/rollback before calling close()
        sqlSession.commit(true);
      }
      return result;
    } catch (Throwable t) {
      Throwable unwrapped = unwrapThrowable(t);
      if (SqlSessionTemplate.this.exceptionTranslator != null && unwrapped instanceof PersistenceException) {
        // release the connection to avoid a deadlock if the translator is no loaded. See issue #22
        closeSqlSession(sqlSession, SqlSessionTemplate.this.sqlSessionFactory);
        sqlSession = null;
        Throwable translated = SqlSessionTemplate.this.exceptionTranslator.translateExceptionIfPossible((PersistenceException) unwrapped);
        if (translated != null) {
          unwrapped = translated;
        }
      }
      throw unwrapped;
    } finally {
      if (sqlSession != null) {
        closeSqlSession(sqlSession, SqlSessionTemplate.this.sqlSessionFactory);
      }
    }
  }
}

获取会话

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
public static SqlSession getSqlSession(SqlSessionFactory sessionFactory, ExecutorType executorType, PersistenceExceptionTranslator exceptionTranslator) {

  notNull(sessionFactory, "No SqlSessionFactory specified");
  notNull(executorType, "No ExecutorType specified");
  //SqlSessionHolder就是一个ThreadLocal变量,如果当前的事务是打开的，就可以获得事务
  SqlSessionHolder holder = (SqlSessionHolder) TransactionSynchronizationManager.getResource(sessionFactory);

  if (holder != null && holder.isSynchronizedWithTransaction()) {
    if (holder.getExecutorType() != executorType) {
      throw new TransientDataAccessResourceException("Cannot change the ExecutorType when there is an existing transaction");
    }

    holder.requested();

    if (logger.isDebugEnabled()) {
      logger.debug("Fetched SqlSession [" + holder.getSqlSession() + "] from current transaction");
    }
	//获得事务
    return holder.getSqlSession();
  }

  if (logger.isDebugEnabled()) {
    logger.debug("Creating a new SqlSession");
  }
	//获得新事务
  SqlSession session = sessionFactory.openSession(executorType);
   ...
}

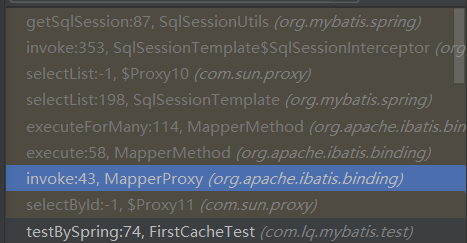

将断点打在holder，通过堆栈查看

image-20220417141343151

1
2
3
4
5
6
7
8
9
10
11
12
13
public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
  if (Object.class.equals(method.getDeclaringClass())) {
    return method.invoke(this, args);
  }
  final MapperMethod mapperMethod = cachedMapperMethod(method);
  return mapperMethod.execute(sqlSession, args);
}

//调用SqlSessionTemplate的方法
public <E> List<E> selectList(String statement, Object parameter) {
    return this.sqlSessionProxy.<E> selectList(statement, parameter);
  }

invoke的动态代理是Mybatis的动态代理,这里的sqlSession是SqlSessionTemplate,原本的SqlSession是DefaultSqlSession。发起会话的调用是会调用到SqlSessionTemplate的逻辑。但是SqlSessionTemplate没有能力发起对Mybatis代码的代用，所以最终还是会调用DefaultSqlSession中的逻辑，而SqlSessionTemplate中的每个方法都会打开会话构造SqlSession，所以将这些方法中构造DefaultSqlSession的逻辑使用动态代理来实现。

而getSqlSession方法获取SqlSession,不使用事务时，每次从获取一个SqlSession都是null，都会使用工厂方法创建一个SqlSession，然后注册到事务上，当方法中不使用事务时，就会注册失败。每次的SqlSession都是新构建的，所以无法命中一级缓存。

二、二级缓存

定义和需求

image-20220417143217651

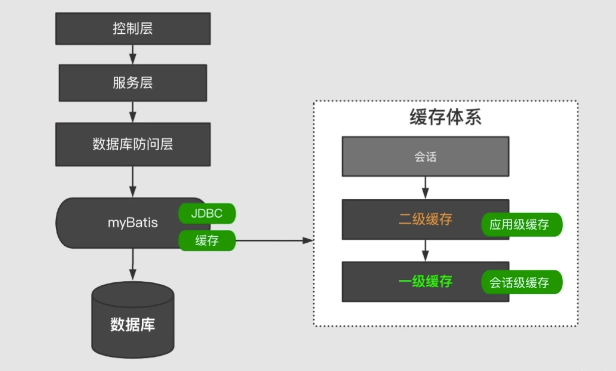

Mybatis中是先走会话，再走二级缓存，再走一级缓存。

二级缓存定义：

二级缓存也称作是应用级缓存，与一级缓存不同的是它的作用范围是整个应用，而宜可以跨线程使用。所以二级缓存有更高的命中率，适合缓存一些修改较少的数据。

二级缓存扩展性要求

因为二级缓存是应用级别的缓存，必然对缓存有所要求。

  1. 存储：需要多种方式的缓存，分为内存、硬盘、第三方集成。
  2. 缓存策略：当缓存到容量上限时，就需要有一些策略淘汰其中的缓存。FIFO先进先出、LRU最近最少使用。
  3. 过期清理：缓存设置过期清理。
  4. 线程安全：多线程场景下，必须保证数据一致。
  5. 命中率统计：对缓存中数据进行命中统计。
  6. 序列化：跨线程使用，2个对象必须不一样。
  7. …

二级缓存组件结构

MyBatis的缓存接口

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
public interface Cache {

  String getId();

  int getSize();

  void putObject(Object key, Object value);

  Object getObject(Object key);

  Object removeObject(Object key);

  void clear();

  ReadWriteLock getReadWriteLock();

}

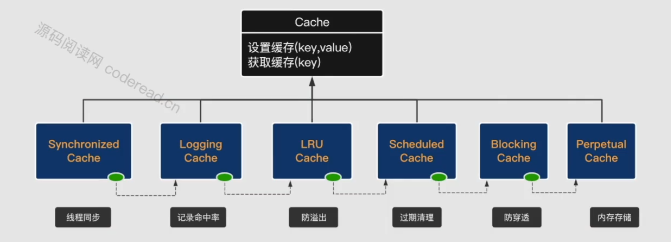

Mybait的二级缓存采用了装饰器加责任链的设计模式。每一层都实现自己的功能，并通过代理的方式实现Cache的所有功能。

image-20220417145818712

开启mybatis二级缓存

配置 解释
cacheEnabled 全局缓存开关默认true
useCache statement 缓存开关默认true
flushCache 清除默认:修改true、查询false
或
@CacheNamespace		 声明缓存空间
或
@CacheNamespaceRef		 引用缓存空间

配置文件中加入

1
2
3
<settings>
    <setting name="cacheEnabled" value="true" />
</settings>

mapper文件中加入

1
2
3
4
5
<cache
        eviction="FIFO"
        flushInterval="60000"
        size="512"
        readOnly="true"/>

就开启了二级缓存

对应的sql语句加上useCache，flushCache就会开启响应策略

和@CacheNamespace不是一个命名空间

测试二级缓存

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
public void cacheTest1(){
    //cache就包含了若干个缓存节点。
    Cache cache = configuration.getCache("com.lq.mybatis.mapper.AccountMapper");
    Account account = new Account();
    account.setId(1);
    account.setMoney(1000.0);
    account.setName("test");
    cache.putObject("lq", account);
    cache.getObject("lq");
    }
}
@Test
public void cacheTest5(){
    SqlSession session1 = factory.openSession(true);
    AccountMapper mapper1 = session1.getMapper(AccountMapper.class);
    mapper1.selectById(1);
    session1.commit();

    SqlSession session2 = factory.openSession(true);
    AccountMapper mapper2 = session2.getMapper(AccountMapper.class);
    mapper2.selectById(1);
}

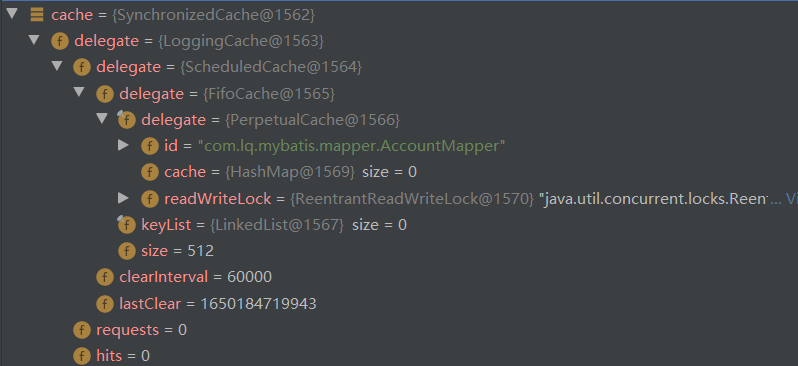

这样设计Cache就可以屏蔽内部复杂性

image-20220417163913111

二级缓存的命中条件

  1. 会话提交之后
  2. Sql语句、参数相同
  3. 相同的statementID
  4. RowBounds相同

二级缓存源码分析

二级缓存命中

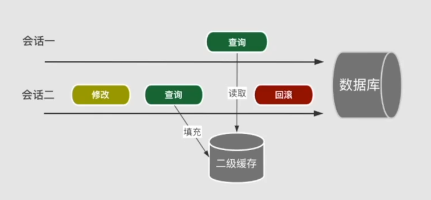

为什么要提交后才能命中缓存?

image-20220417170340680

如果不提交就命中会产生脏数据。

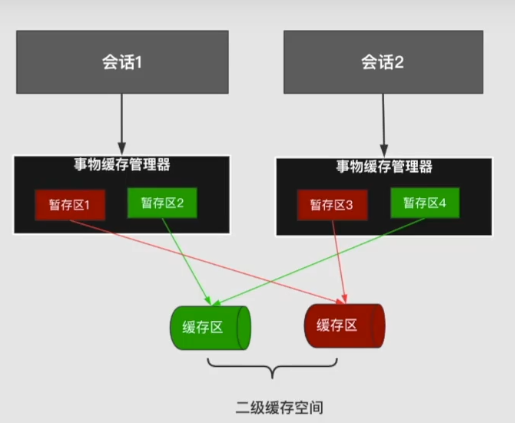

会话中访问缓存空间

image-20220417170801574

每次执行mapper的方法时都会把代码提交到暂存区，只有当commit时才会提交到缓冲区。

这里的缓冲区就是SynchronizedCache

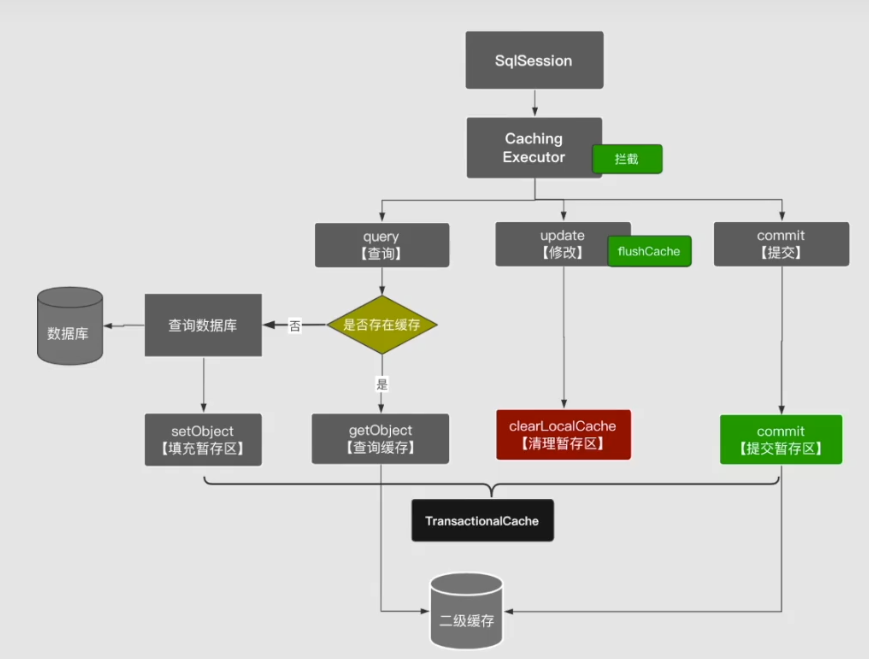

二级缓存执行流程

image-20220417215007525
CachingExecutor
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
public <E> List<E> query(MappedStatement ms, Object parameterObject, RowBounds rowBounds, ResultHandler resultHandler, CacheKey key, BoundSql boundSql)
      throws SQLException {
    //获取缓存
    Cache cache = ms.getCache();
    if (cache != null) {
        //清空缓存
      flushCacheIfRequired(ms);
      if (ms.isUseCache() && resultHandler == null) {
        ensureNoOutParams(ms, parameterObject, boundSql);
        @SuppressWarnings("unchecked")
          //通过缓存管理器获取
        List<E> list = (List<E>) tcm.getObject(cache, key);
        if (list == null) {
          list = delegate.<E> query(ms, parameterObject, rowBounds, resultHandler, key, boundSql);
          tcm.putObject(cache, key, list); // issue #578. Query must be not synchronized to prevent deadlocks
        }
        return list;
      }
    }
    return delegate.<E> query(ms, parameterObject, rowBounds, resultHandler, key, boundSql);
  }
TransactionalCacheManager缓存管理器，管理暂存区
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
public class TransactionalCacheManager {

  private Map<Cache, TransactionalCache> transactionalCaches = new HashMap<Cache, TransactionalCache>();

  public void clear(Cache cache) {
    getTransactionalCache(cache).clear();
  }

    //获取缓冲区作为key,暂存区作为value
  public Object getObject(Cache cache, CacheKey key) {
    return getTransactionalCache(cache).getObject(key);
  }

  public void putObject(Cache cache, CacheKey key, Object value) {
    getTransactionalCache(cache).putObject(key, value);
  }

  public void commit() {
    for (TransactionalCache txCache : transactionalCaches.values()) {
      txCache.commit();
    }
  }

  public void rollback() {
    for (TransactionalCache txCache : transactionalCaches.values()) {
      txCache.rollback();
    }
  }

  private TransactionalCache getTransactionalCache(Cache cache) {
    TransactionalCache txCache = transactionalCaches.get(cache);
    if (txCache == null) {
      txCache = new TransactionalCache(cache);
      transactionalCaches.put(cache, txCache);
    }
    return txCache;
  }

}
TransactionalCache暂存区
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
public class TransactionalCache implements Cache {
  @Override
  public Object getObject(Object key) {
    // issue #116
     //防止缓存穿透
    Object object = delegate.getObject(key);
    if (object == null) { //填充一个值
      entriesMissedInCache.add(key);
    }
    // issue #146
    if (clearOnCommit) { //二级缓存有值，但是已经清空了，还是返回一个null,在同一个会话中，当先执行修改时，会清空二级缓存，但是因为没有commit不会真正清空，而在这个会话中执行查询，查到的是脏数据，所有要返回一个null
      return null;
    } else {
      return object;
    }
  }
  //清空，并没有清空，只是加了一个标记
  public void clear() {
    clearOnCommit = true;
    entriesToAddOnCommit.clear(); //只是清空了暂存区
  }

  public void commit() {
    if (clearOnCommit) {
      delegate.clear();
    }
    flushPendingEntries();
    reset();
  }

}
